Specifications of SUNJOY PLUS

썬조이플러스 사양

SUNJOY PLUS, the heating system that is augmented only with benefits customers have always wanted on top of all the benefits of SUNJOY,
which delivers the same warm feeling of the sunlight. SUNJOY PLUS is opening a new chapter of the ceiling-mount radiant heating system.

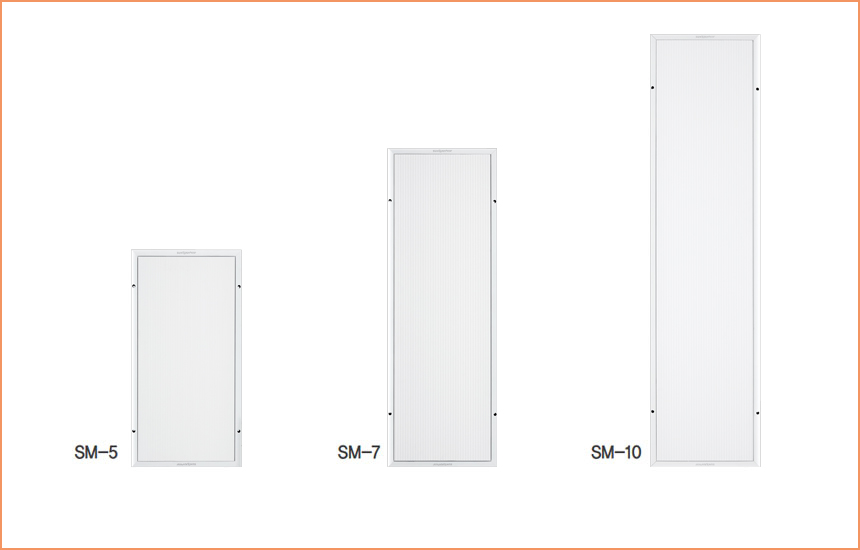

Model Size(mm) Heating Area(㎡) Weight(kg) Voltage(V) Current(A) Capacity(W) Amount of Heat(kcal)
SM-5 Exposed(N) 306×606×30 0.15 2.8 220 2.27 500 430
Embedded(M) 298×598×30 2.5
SM-7 Exposed(N) 306×906×30 0.23 4.1 3.41 750 645
Embedded(M) 298×898×30 3.7
SM-10 Exposed(N) 306×1206×30 0.32 5.3 4.55 1000 860
Embedded(M) 298×1198×30 4.9
Thermostat EKC-30
